关节轴承型号对照表

关节轴承型号对照表
Interchange table

-------------------------------------------------------------------------------------------------------------------------------

尺寸公差

尺寸公差
Tolerances

--------------------------------------------------------------------------------------------------------------------------

１、杆端关节轴承内圈
　　Inner ring of rod ends

d内径 mm	超过 over 到　incl	- 6	6 10	10 18	18 30	30 50	50 80	80 120
SI..E SI..ES SI..ES 2RS SA..E SA..ES SA..ES 2RS GIR..UK GAR..UK GIR..UK 2RS GAR..UK 2RS GK..DO GF..DO GIHR..DO GIHR-K..DO		0 -0.008	0 -0.008	0 -0.008	0 -0.010	0 -0.012	0 -0.015	0 -0.020
GIHN-K..LO GF..LO				+0.018 0	+0.021 0	+0.025 0	+0.030 0	+0.035 0
SI..T/K SA..T/K SI..PK SA..PK SSI..T/K SSA..T/K PHS.. POS..		+0.012	+0.015	+0.018	+0.021
CF.. CF..T CM.. CM..T JF.. JM.. SIZJ..S SAZJ..S SIZP..S SAZP..S		+0.038 -0.013	+0.038 -0.013	+0.038 -0.030	+0.038 -0.030	+0.038 -0.030

　2、杆端关节轴承中心高偏差
　　 Centre height deviation of rod ends

d内径 mm	超过 over 到　incl	- 6	6 20	20 30	30 45	45 60	60 80
Δhs		+0.80 +1.20	+0.80 -1.20	+1.00 -1.70	+1.40 -2.10	+1.80 -2.70	+2.25 -3.40

　3、向心关节轴承内圈
　 Inner ring of spherical plan bearing

　4、向心关节轴承外圈
　 Outer ring of spherical plan bearing

关节轴承的径向游隙

关节轴承的径向游隙
Radial internal clearance of spherical plain bearings

--------------------------------------------------------------------------------------------------------------------------

1、杆端关节轴承
　 Rod ends

型号Part No.	孔径超过到	基本组 Group normal
	d Over～incl(mm)	min～max(μm)
SI..E SI..ES 　SI..ES 2RS 　SA..E SA..ES 　SA..ES 2RS 　GIHR..DO 　GIHR-K..DO 　GIHN-K..DO 　GK..DO GF..DO	～12	8～68
	12～20	8～82
	20～35	8～100
	35～60	8～120
	60～80	8～142
CF.. CM.. 　SIZJ..S 　SAZJ..S 　JF.. JM..	～8	10～30
	8～14	15～60
	14～20	40～80
	20～35	50～90
	35～50	60～110
SIZP..S/SAZP..S 　　PHS.. POS..	～30	8～55
SI..T/K SA..T/K 　SSI..T/K SSA..T/K 　CF..T CM..T 　SI..PK SA..PK	～12	20～30
	12～20	0～40
	20～30	0～50
GIR..UK 　GIR..UK 2RS 　GAR..UK 　GAR..UK 2RS	～12	0～32
	12～20	0～40
	20～35	0～50
	35～60	0～60
	35～60	0～72
SQP..　　　SQ..RS		20～60
SQD..　　　SQZ..		0～30

--------------------------------------------------------------------------------------------------------------------------

　2、向心关节轴承
Spherical plain bearing

型号 Part No.	孔径超过到	C2组 Group C2	基本组 Group normal	C3组 Group C3
	d Over～incl(mm)	min～max(μm)	min～max(μm)	min～max(μm)
G..PB COM.. GEBK..S/GEBJ..S	～30		0～60
GE..UK G..PW GE..FW COM..T HCOM..T	～12		4～28
	12～20		5～35
	20～30		6～44

向心关节轴承

向心关节轴承

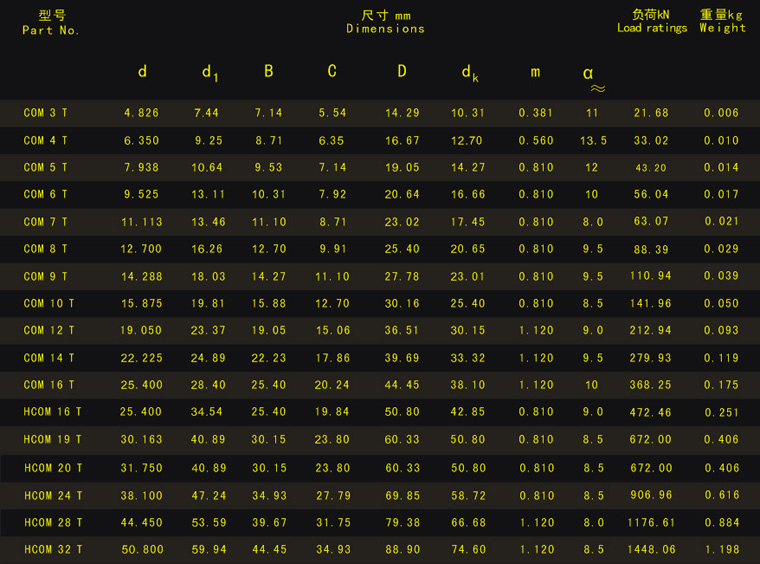

Radial spherical plain bearings COM..T/HCOM..T
Maintenance-free, inch dimensions

-------------------------------------------------------------------------------------------------------------------------------

-外圈挤压成型。 -外圈球面粘贴PTFE织物。 -英制系列。 -Outer ring pressed around inner ring. -Outer race lined with PTFE fabric composite material. -In inch dimension series.

向心关节轴承

向心关节轴承
Radial spherical plain bearings COM.. / HCOM..
Maintenance required, inch dimensions.

-------------------------------------------------------------------------------------------------------------------------------

-外圈挤压成型。 -外圈有润滑油槽和油孔。 -英制系列。 -Outer ring pressed around inner ring. -With lubricating groove and holes in the outer ring. -In inch dimension series.

向心关节轴承

向心关节轴承
Radial spherical plain bearings G..PW,
Maintenance-free

-------------------------------------------------------------------------------------------------------------------------------

-外圈材料为黄铜。 -尺寸与G..PB相同。 -外圈球面粘贴有PTFE合成材料。 -Outer ring in brass. -Dimensions same as G..PB. -Outer race lined with PTFE fabric composite material.

向心关节轴承

向心关节轴承
Radial spherical plain bearings G..PB
Maintenance required

-------------------------------------------------------------------------------------------------------------------------------

-外圈材料为青铜。 -外圈挤压成形。 -外圈有润滑油孔。 -Outer ring in bronze. -Outer ring pressed around inner ring. -With lubricating holes in the outer ring.

向心关节轴承

向心关节轴承

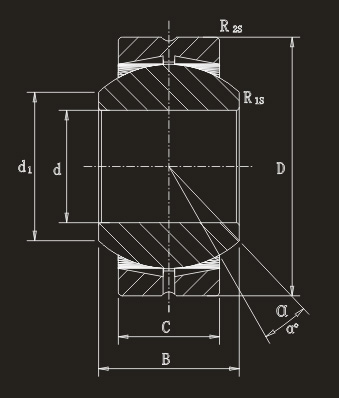

Radial spherical plain bearings GEBJ..S
Maintenance required

-------------------------------------------------------------------------------------------------------------------------------

-外圈挤压成形。 -外圈有润滑油槽和油孔。 -Outer ring pressed around inner ring. -With lubricating groove and holes in the outer ring.

向心关节轴承

向心关节轴承

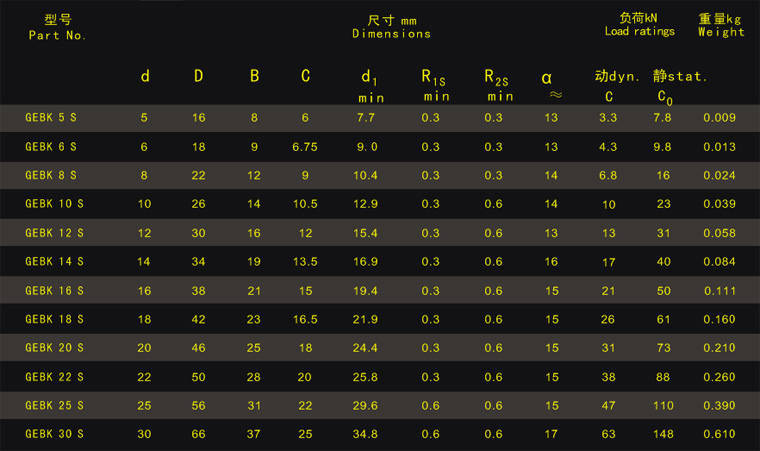

Radial spherical plain bearings GEBK..S
Maintenance required

-------------------------------------------------------------------------------------------------------------------------------

-外圈球面镶有青铜衬垫。 -外圈有润滑油槽和油孔。 -Outer race lined with bronze liner. -With lubricating groove and holes in the outer ring.

向心关节轴承

向心关节轴承

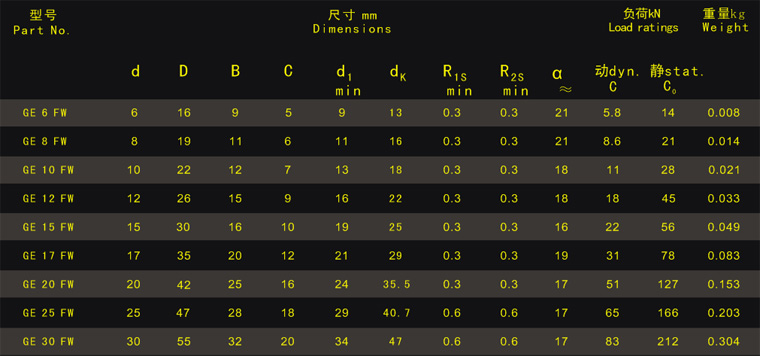

Radial spherical plain bearings GE..FW
Maintenance-free, heavy-duty

-------------------------------------------------------------------------------------------------------------------------------

-外圈挤压成形。 -外圈球面衬有PTFE合成材料。 -内圈球面镀铬。 -Outer ring pressed around inner ring. -Outer race lined with PTFE composite material. -Spherical surface of inner ring chromium plated.

向心关节轴承

向心关节轴承

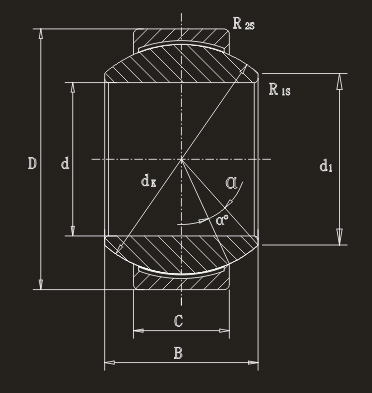

Radial spherical plain bearings GE..UK
Maintenance-free

-------------------------------------------------------------------------------------------------------------------------------

-外圈挤压成形。 -外圈球面衬有PTFE合成材料。 -内圈球面镀铬。 -Outer ring pressed around inner ring. -Outer race lined with PTFE composite material. -Spherical surface of inner ring chromium plated.

用于液压部件的杆端关节轴承

用于液压部件的杆端关节轴承
Rod ends for hydraulic components GIHR..DO
Maintenance required, with female thread

-------------------------------------------------------------------------------------------------------------------------------

-杆端座体带有左旋或右旋的内螺纹。 -由向心关节轴承GE..ES或GE..ES 2RS和杆端座体组成。 -杆端座体带有润滑油孔或油杯。 -Rod end housing with right or left-hand female thread. -It is made up of a radial spherical plain bearing GE..ES or GE..ES 2RS and rod end housing. -Rod end housing with a lubricating hole or grease nipple.
